Solving Problems For Waste Sorting And Recycling Industry

Waste sorting and recycling have been outstanding issues for cities. Shopping malls, schools, offices, and even industrial parks all have a need for waste sorting and recycling. In addition, YiBei IoT is founded to solve problems.

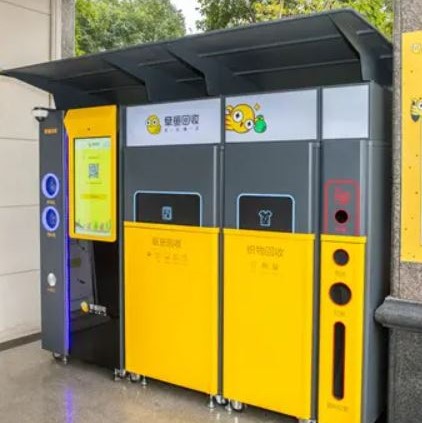

ioT Smart Waste Sorting And Recycling Box Project Story

In the industrial design stage, LKK designers put forward an intelligent and technological design direction according to the previous strategy and customer needs. The interactive lighting effect is specially designed: when the user scans the code to enter, the ambient light will light up; when there is water in the waste water bottle delivered by the user, the delivery port will light up with lights of different colors to remind the user. In addition, the design adopts modular design, sorting the waste into multiple categories modules including garments, plastic, metals, papers, etc. Subject to the sorting and recycling scenarios, IoT Smart Waste Sorting And Recycling Box can be customized to meet the need.

LKKERSCM completes the product development and production supply chain from mechanical design and mass production services. In 45 days, LKKER SCM completed the mechanical design, electronics engineering, hardware, and software integration, and produced 30 pcs samples of IoT smart waste recycling box.

IoT Smart Waste Recycling Box Value

IoT smart waste recycling box realizes intelligent sorting and recycling of daily waste through advanced digital technologies such as the Internet, big data, artificial intelligence, and the Internet of Things.

LKKER SCM together with YiBei IoT showcased the IoT smart waste recycling box at The Computing Conference 2018, Canton Tower IDG Science And Technology Conference 2018, and World Internet Conference Wuzhen Summit 2018. Longfor (property development group), Auchan (France Retail Group) and Fresh Hema (Under Alibaba Retail Group) also expressed interest in ordering the IoT smart waste recycling box.

We provide one-stop product development services, including industrial design, mechanical design, Electronic Design(Hardware), firmware design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification,  mass production, etc

Request A Quotation

Solving Problems For Beekeeping Industry

Traditional beehives are wooden and need to be replaced every one or two years. Traditional bee farming has problems such as high operation costs, low revenue, quality control difficulty, scattered supply chain, and lack of technical support. In order to scale up the beekeeping industry, Small Bee is founded to solve these problems.

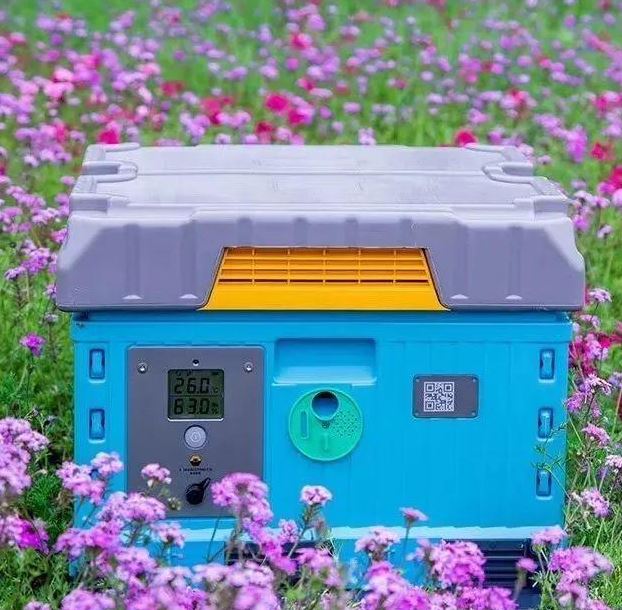

The AioT Smart Beekeeping Box Project Story

Small Bee invites LKKER SCM and Alibaba Cloud to join the innovation project of the beekeeping box to explore an AioT smart beekeeping business model and establish a complete digital ecological smart beekeeping system.

LKK has been a long-term partner with Alibaba Cloud. Before the Small Bee AioT smart beekeeping box project, LKK portfolio company Small Design, has already successfully cooperated with Alibaba Cloud to launch World First Artificial Intelligence Logo Design System, which replaces the traditional design model.

LKKER SCM is responsible for redesigning the AioT smart beekeeping box including industrial design as well as mechanical design while Alibaba Cloud contributes to the AioT technology and data management platform of the beekeeping box. The built-in sensors can monitor and record key data including weighing, temperature and humidity, and bee activity, knowing the entry and exit of bees, knowing whether the beehives are full of honey, and finally gathering the data in each production area which is convenient for tracing the origin of honey.

LKKER SCM leads the production of the AioT smart beekeeping box. The first batch quantity is 500 pcs. The beekeeping box was widely placed in Mo Island Beekeeping Farm in Feb 2019, turning the farm into the world’s first digital AioT smart beekeeping farm that allows bees to live in fully intelligent beehives.

The AioT Smart Beekeeping Box Value

In 2019, LKKER SCM totally produced 2600 pcs AioT smart beekeeping boxes for Small Bee. Due to the high-efficiency operation of beekeeping boxes, the farm which adopted the AioT smart beekeeping box increased the honey production by 30%~50% compared to that of traditional beekeeping, and the bee breeding rate increased by 30%.

We provide one-stop product development services, including industrial design, mechanical design, Electronic Design(Hardware), firmware design, rapid prototyping,small batch production,DFM,Mold design and manufacturing, Validation&Certification,  mass production, etc

Request A Quotation

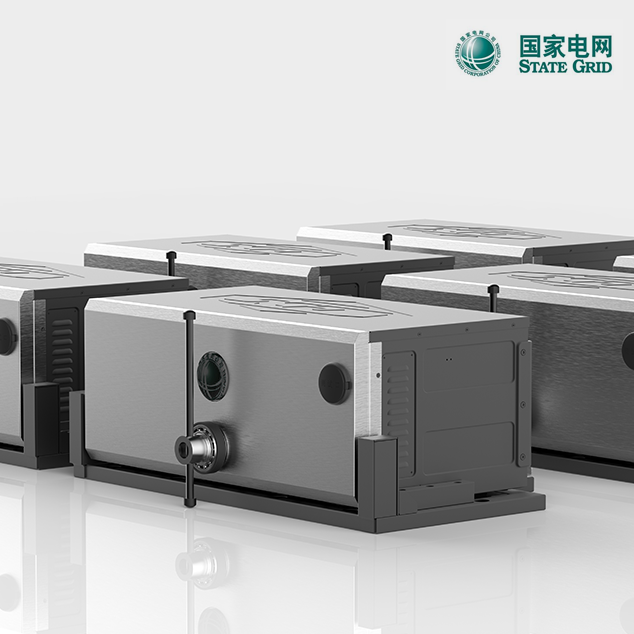

Background

XJ Group Corporation is a directly affiliated industrial unit of State Grid Corporation of China. It is a large-scale backbone and leading enterprise in China’s power equipment industry. Its products cover all aspects of power systems including power generation, transmission, distribution, and electricity, ranging from primary and secondary line, high and medium voltage and AC and DC. It is the most competitive power equipment manufacturer and system solution provider with the strongest comprehensive supporting capacities in China.  This product is a safe and reliable bus battery box installed via robot and is easy to install, repair, unlock.

Solutions & Goal

1.Considered the error of manufacturing; the battery box cannot have activity allowance when fixed in the battery rack and in the meantime should ensure that the mechanism works at the dead point. The design team decided to put a layer of elastic gum on the contact surface of the locking plate and lock sleeve to leave certain amount of allowance when the locking plate locked in and ensure the elastic gum have small activity when the battery swings under stress.

2.In order to ensure the locking plate can be smoothly inserted and the power of the robot to turn the key is not too strong, the contact surface of the locking plate and the elastic gum are curved; besides, in order to reduce the torque of the robot rotation, the design team considered to use a bearing for the colonnette to ensure smooth rotation. The inner bore of the bearing is considered to be tightly fitted, or a snap ring is to be added at the top of the bearing for axial positioning.

3.The fan outlet is designed with a round hole, and the fan itself has a filter screen. The appearance is not ugly, and the processing difficulty is reduced.

4.The battery rack is made into tray type, with the two sides remaining as short as possible. The left and right lock sleeves and the left and right guide wheels are directly mounted on the square steel at the bottom.

Achievements

The standardized design of the battery box allows it to be used in various electric buses and buses; automatic servo tracks the vehicles to change the battery, which reduces the requirements for drivers. Bus drivers are only required to drive directly into the lanes for battery replacement; high-speed mechanical vision positioning battery box replacement allows replacement of multiple sets of battery box at the same time; centralized control of intelligent battery replacement allows local and remote control and unmanned replacement, thereby greatly reducing staffing.

The battery-rent mode allows the vehicle to be separated from the battery and reduces the cost of the user’s purchase, and is beneficial to the promotion of the electric vehicle. Centralized management and maintenance of the battery as well as the stagger utilization extend battery life. The promotion of electric vehicles has significant social benefits.

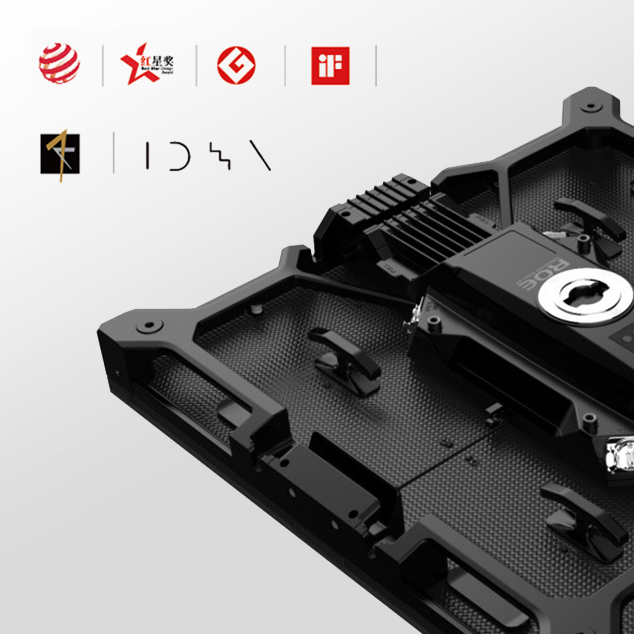

Product Info

The product is made via CNC precision digital processing, with error less than 0.1MM and allowing seamless assembly of any size, more convenient and fast installation and disassembly. In addition, it has the advantage of low power consumption, which can save 30% energy compared with traditional display products. It enables a wide range of brightness adjustment, up to 200-1500cd/m2, to meet the needs of a variety of different environments. ROE Visual’s creative LED display can be widely used in all kinds of large-scale events, exhibitions and landmark buildings, etc., with the advantages of fast assembly and disassembly, and ease of use.

Solutions & Goal

1.Focus on simplicity in design to come up with a special “slimming plan”. The backbone shape not only enhances the streamlined aesthetics, but also minimizes the weight and takes fineness to extremes. The mechanism is the appearance and the appearance is also the mechanism. The ultimate optimization and refinement of the mechanism takes into full consideration the harmony between the strength, the processing, the assembly and the appearance.

2.Fully consider the man-machine interaction and the user’s operating experience, and cleverly combine the handle of the case with the arresting mechanism. When assemble the LED screen, the case can be quickly locked after lifting.

3.In order to ensure the overall slimness and lightness, the surrounding bosses are built relatively independently to avoid adding the weight and visual complexity. Make use of hard lines to achieve visual integrity.

Achievements

LKKER SCM adopted the project management system and built a temporary project team with outstanding designers selected from the departments of industrial design, mechanical design and supply chain management to dedicate to the design of the product. The team members start from perspective of different professions to simplify the appearance to “skeleton”, compress the internal mechanism and layout, select the right material and apply CNC precision digital processing, with error less than 0.1MM and allowing seamless assembly of any size.

ROE Visual’s creative LED display can be widely used in all kinds of large-scale events, exhibitions, landmark buildings, etc., and is currently reserved for concerts and exhibitions at home and abroad, with the advantages of fast assembly/disassembly and ease of use. It is the winner of various awards in the world, such as iF Gold Award, Good Design Best 100, Red Dot and Red Star Design Award. It helps clients become the benchmark of their industry, making it an industry’s upstart and contracting with the world’s well-known brands. Above all, it improves the operation process, greatly reduces the intensity of manual operations, and enhance the efficiency of operations. Its independent innovation design and R&D have been recognized by the public, attracting attention from a number of foreign application fields. Businesses change society and innovations creates the future.

Backgroud

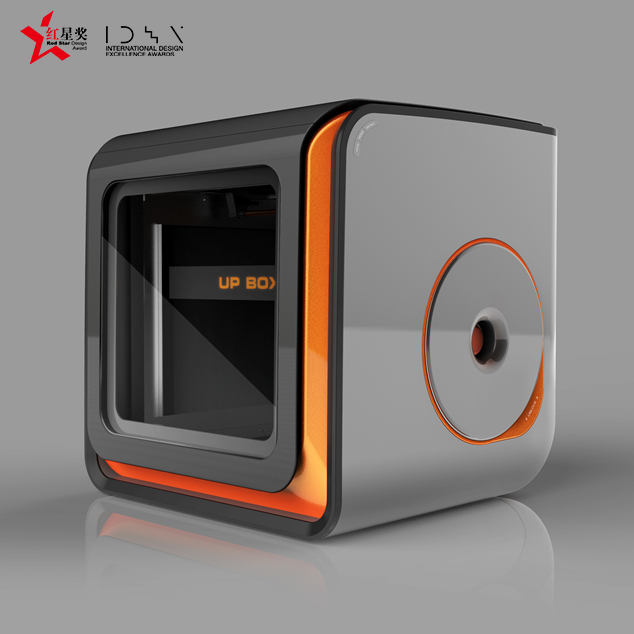

For TierTime 3D printers, although there are many similar smart printers on the market, the serious homogenization, the equivalent technical strength and the overemphasis on product functions make them indistinctive. Thus, a new positioning is required to establish a unique style that stands out from other brands, which is currently still blank.

LKKER SCM team helped TierTime redefine the target buyers and product application scenarios. The product is targeted at the market segments of the education industry and studio scenes, which presents new opportunities to help the customer avoid the Red Ocean competition. We helped the customer with design research, brand logo design, product design and the design of the second generation home printer.

Solutions & Goal

1.Redesigned the brand image for TierTime and integrated the image into the product to create distinctive features; LKKER SCM redesigned the brand logo image for the TierTime 3D printer and integrated the image into the whole product design. The technology-matching stylish design not only reveals a sense of high-tech but also is elegantly accessible.

2.Placed emphasis on the detailed design, reduced product cost, solved the problem of better product use; One-piece design of built-in tray is convenient for operation. Easy-to-remove print tray allows easy residue disposal after printing. The printer is directly connected to the USB interface of computer, saving the inconvenience of importing model. The integral design is a breakthrough to the regular box printers and increases the vitality of the product.

3.The second generation home printer design. The separation design of the host and the feeder allows the family members to place the printer at will, without affecting each other. The user-friendly toolbox design at the bottom is convenient for the users to maintain in case of minor malfunction.

Achievements

The 3D printer developed by LKKER SCM team for TierTime makes TierTime stand out in the 3D printer industry. The strategy of differentiated market groups better promoted the brand! The product was unveiled in many international exhibitions with unanimous praise and won the IDEA award.
